$4,699

RCP Pro

Available Product id: RCP-PRO-V1B-BK
Shipping Worldwide : Will be shipped as soon as possible

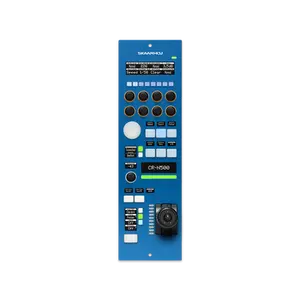

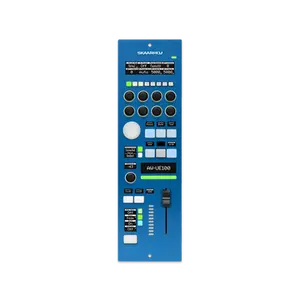

The RCP Pro is SKAARHOJ’s most advanced camera shading controller. It features a brand-new joystick with a built-in Tally Light and OLED Screen, to display Iris values on the fly. It also includes a large, tilted screen for a perfect viewing angle.

The RCP Pro works well for remote production. Just plug the controller into your existing IP network, via the built-in IP connection. The RCP Pro is also PoE as well.

The RCP Pro is a perfect solution to shade cameras from major manufacturers, such as RED, Canon, ARRI and Lumix, among several others.

The RCP Pro comes with Blue Pill Inside. Blue Pill is SKAARHOJs new platform that further expands the controlling capabilities of SKAARHOJ products. For more information on the capabilities of Blue Pill, please view SKAARHOJ’s YouTube Video here

Shipping Worldwide : Will be shipped as soon as possible
RCP Pro
$4,699
Form Factor

Fits in existing OB Van racks with a Sony RCP Form factor (4”/102mm Wide), or sits perfectly on a Table.

Color Shading

Brings in Color Setting Controls of multiple main broadcast and cinema cameras on the market today.

Shade RED, Lumix, Canon, etc.

Thanks to Blue Pill Inside, the RCP Pro can shade the RED KOMODO/V-RAPTOR, CANON C300MKIII/C500MKII, and Lumix BGH1/BSH1, to name a few.

Joystick Display

Includes a built-in Tally Light, to display values set for the joystick.

Tilted Display

Perfect Angle to view the Complete Overview of the Controller

Joystick Pad

Pressure Sensitive PTZ Control Pad

Backlit Encoders

Eight high-quality backlit encoders

Four-Way Buttons

User-Programmable Four-way buttons

ID Display

Camera ID clearly displayed with OLED Technology and RGB Tally Bar.

PoE

Power Over Ethernet (IEEE802.3at)
Dimensions
RCP Pro
Length: 105 mm Width: 355 mm
Height: 115 mm Total weights:  1.289 kg.



You can find our technical drawings on this site:
https://www.skaarhoj.com/media-files

Shipping data (Box)
RCP Pro
Length: 445 mm Width: 140 mm
Height: 150 mm Total weights:  1.950kg.
Data Sheet

Check out our data sheet for hardware specs, and other technical information.

Click here for download: Data Sheet

Devices the product connects with

Notably, but not limited to:

RED Komodo/V-Raptor

DreamChip ATOM Mini /ATOM One/ SSM500

Panasonic Lumix BGH1

Panasonic Lumix BS1H

Canon EOS C300 Mark III and EOS C500 Mark II

Canon CR-N300, CR-N500, CR-N700

ARRI Amira

For a comprehensive list of Blue Pill supported devices and configurations click here.

EAN Code - Tariff Code & CoO

RCP Pro

EAN Code: 5714074002390

US Tariff Code: 8471.80.10

Rest of the World Tariff Code: 8471.80.00

CoO: Denmark
RCP Pro presentation

Watch Kasper explaining the benefits of the RCP Pro.
Control the RED KOMODO & V-RAPTOR | SKAARHOJ & RED webinar

On December 14th SKAARHOJ & RED joined for an exciting new webinar. James from RED introduced us to their new flagship camera the V-RAPTOR 8K. Kasper showed the TCP/IP Control for the RED KOMODO & V-RAPTOR, locally and remotely. We will also show you the power off the new Blue Pill Reactor and how it can ease your video production workflow.
RED KOMODO 3D Capture

In this video, Kasper will show you how you can use the RED KOMODO´s in a 3D live production. You can Adjust the lens & parameters in parallel sets of two cameras, while still being able to toggle between single & dual mode. Using the Blue Pill & Color Fly combination.
Live Production With LUMIX BGH1 & RCP Pro

In this video, Kasper will show you how you can Control & Color Shade the Panasonic LUMIX BGH1 in a Live Production, using SKAARHOJ´s RCP Pro Panel.
12V Power Supply

Manufacturer: PHIHONG

Model Name: PSA15R-120P

Output: 12V/1.25A

Cable Length: 1.5m

Adapter type: EU, GB, US, AU depending on shipping conutry

DC Output Connector: 5.5mm x 2.1mm x 10mm Center Positive

USB Programming Cable

Type: USB 2.0 A-Micro B

Length: 1m

Recommended cables (not in the box)

As of September 1st 2022, we will no longer send Networking Cables when we ship our controllers, due to the environment. Instead, we will recommend using LAN Cat 6 S/FTP or better.
